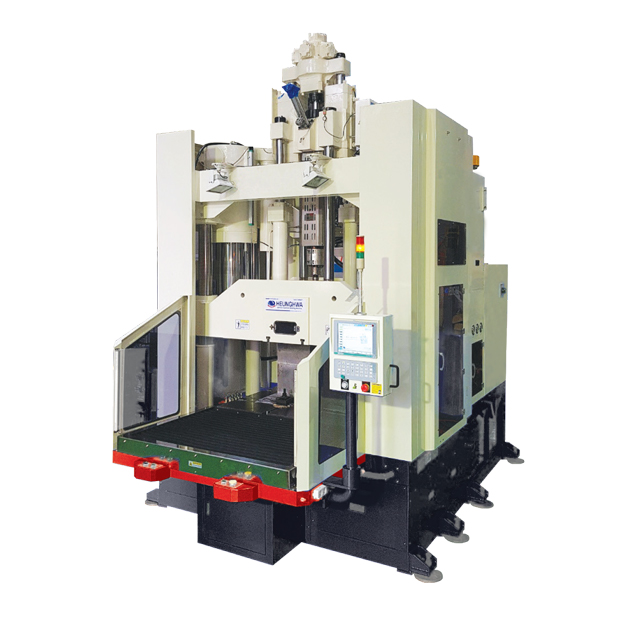

HXSL(100~500 TON)

Low deck type Series

Low deck type series is possible to manufacture a forward backward slide type as well as rotary type.
Low deck type series is designed to suitable for European safety standard and put our lots of effort into customer’s safety.

HXSL

Characteristics

  • The height from the floor to the working position is fixed at 900mm to optimize the working conditions of the operator.(All models are have the same height)
  • Realization hypersensitive Mold protection with overwhelming Mold protection system as a competitors.
  • Worktable unnecessary
  • Workspace availability
  • Lower workstation makes it easier to attach and remove molds
  • Increase convenience of management.
  • Easy automation.
  • It can be manufacture the table and horizontal injection type.
Attachable Mold Dimenstion
V H
100TON 900 700
120TON 900 700
150TON 1000 750
200TON 1100 800
250TON 1200 900
300TON 1200 900
400TON 1300 1020
500TON 1700 1300

Floor plan

도면

Technical Data - INJECTION

Technical Data - CLAMPING

Technical Data - COMMO
