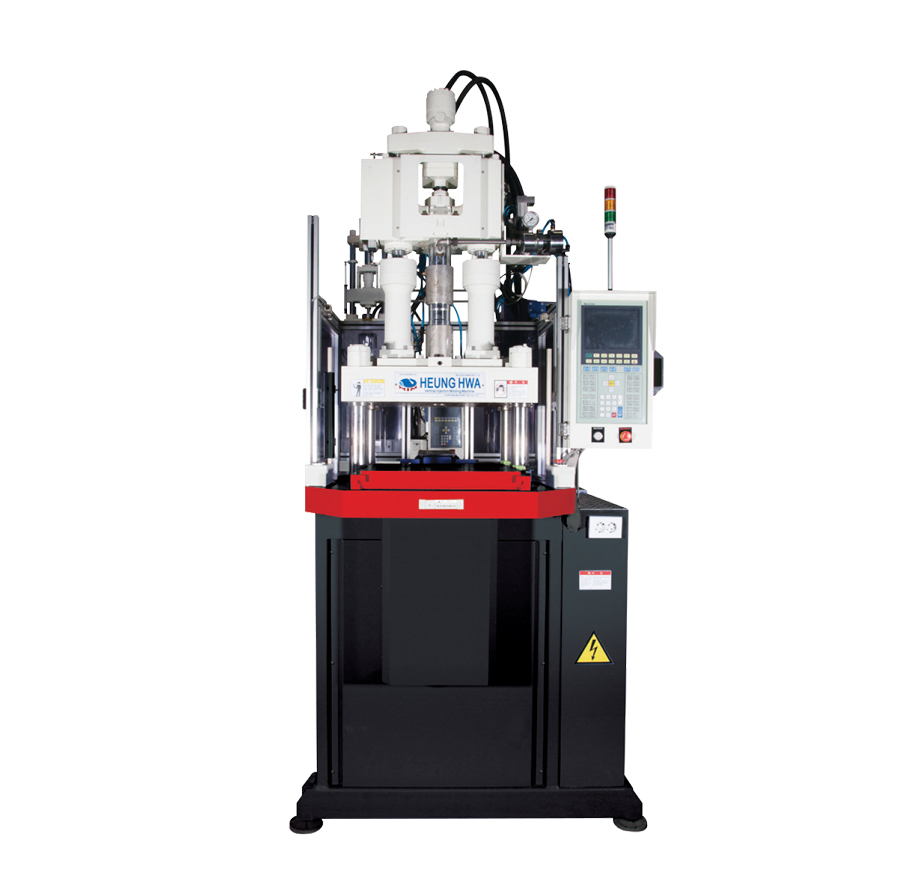

HVS(25~500 TON)

Doubling productivity due to fast and accurate injection and realization energy saving
Workability is convenient by precise and accurate control.

PDF Download
HVM

Characteristics

  • Convenient insert work
  • Minimize temperature management deviation with adopt complete range ceramic heaters
  • Automation is easy to accurate slide stop position
  • Precise stable forming with convenient machine structure
  • High speed injection can be possible with adopt ‘ACC high speed hydraulic system
  • Life extension of hydraulic temperature climbing delay valve
  • Maximum realization of same level with wide Tie bar distance
  • t is allow to change the height with minimum Mold according to the customer’s request

Technical Data - INJECTION

Screw Symbol Screw Diameter Injection Weight Injection Pressure Injection Rate Injection Distance Screw Rotation
Unit mm
g oz
kg/㎠ ㎤/sec mm rpm
HVS-25VS Y 18
26.7 0.9
2765 25 100 0-400
*A 22
39.9 1.4
1851 37
B 25
51.5 1.8
1434 48
HVS-50VS Y 22
47.9 1.7
2733 42 120 0-400
*A 25
61.8 2.2
2117 55
B 28
77.5 2.7
1688 69
HVS-75VS Y 28
103.4 3.6
2330 80 160 0-300
*A 32
135 4.8
1784 104
B 36
170.9 6
1410 132
HVS-100VS Y 32
143.5 5.1
2331 100 170 0-300
*A 36
181.6 6.4
1842 126
B 40
224.2 7.9
1492 156
HVS-120VS Y 36
192.3 6.8
2317 115 180 0-300
*A 40
237.4 8.4
1877 145
B 45
300.4 10.6
1483 227
HVS-150VS Y 40
263.8 9.3
2405 166 200 0-280
*A 45
333.8 11.8
1900 210
B 50
412.1 14.5
1539 259
HVS-200VS Y 45
367.2 13
2323 229 220 0-280
*A 50
453.3 16
1882 283
B 55
548.5 19.3
1555 342
HVS-250VS Y 50
494.6 17.4
2253 266 240 0-250
*A 55
598.4 21.1
1862 322
B 60
712.2 25.1
1564 383
HVS-300VS Y 50
494.6 17.4
2253 266 240 0-250
*A 55
598.4 21.1
1862 322
B 60
712.2 25.1
1564 383
HVS-400VS Y 55
598.4 21.1
2083 280 240 0-220
*A 60
712.2 25.1
1750 333
B 65
835.8 29.5
1491 391
HVS-500VS Y 60
712.2 25.1
2000 272 240 0-200
*A 65
835.8 29.5
1704 320
B 70
969.3 34.2
1469 371

Technical Data - CLAMPING

Clamping Force Opening Force Tie-bar Distance Mold base Size Min. Mold Thickness Clamping Stroke Ejection Force Ejection Stroke
Unit ton ton mm mm mm mm ton mm
HVS-25VS 25 2.5 300 X 220 475 X 375 180 220 2.1 50
HVS-50VS 50 4 360 X 210 520 X 400 200 250 2.7 60
HVS-75VS 75 6 490 X 300 640 X 450 230 280 2.7 70
HVS-100VS 100 8 560 X 340 750 X 530 290 300 4.3 80
HVS-120VS 120 10 600 X 420 790 X 600 300 330 4.3 100
HVS-150VS 150 13 635 X 495 900 X 750 300 400 4.3 110
HVS-200VS 200 17 800 X 550 1050 X 800 350 450 7 110
HVS-250VS 250 21 900 X 630 1150 X 900 350 450 7 110
HVS-300VS 300 25 900 X 700 1150 X 970 400 500 7 120
HVS-400VS 400 33 1100 X 920 1500 X 1330 450 600 11 120
HVS-500VS 500 37.5 1320 X 1120 1630 X 1410 500 700 11 120

Technical Data - COMMO

Oil Tank Capacity Pump Capacity Heater Capacity Machine Size Machine Weight
Unit ℓ kw/hp kw m ton
HVS-25VS 80 10 2.8 1.3 X 0.9 X 2.33 2
HVS-50VS 120 12 3.7 2.15 X 1.0 X 2.6 2.6
HVS-75VS 180 15 5.2 2.45 X 1.15 X 3.10 3.4
HVS-100VS 240 18.5 6.2 2.6 X 1.3 X 3.95 4.2
HVS-120VS 240 30 6.2 2.9 X 1.4 X 4.2 5.6
HVS-150VS 300 30 12.2 3.12 X 1.5 X 4.6 8.5
HVS-200VS 300 45 13 3.4 X 1.6 X 4.8 10
HVS-250VS 380 50 13 3.6 X 1.7 X 5.4 12
HVS-300VS 380 50 21 3.8 X 1.8 X 5.6 14
HVS-400VS 450 55 21 4.2 X 2.1 X 5.7 18.5
HVS-500VS 520 55 21 4.5 X 2.5 X 5.5 24
